Complete Rotational System

Complete Rotational System
Varenr.
ME-8950A
Lager
Bestillingsvare
Pris
kr 24 907,00 Eks. MVA

Kvantumsrabatt

Loading...

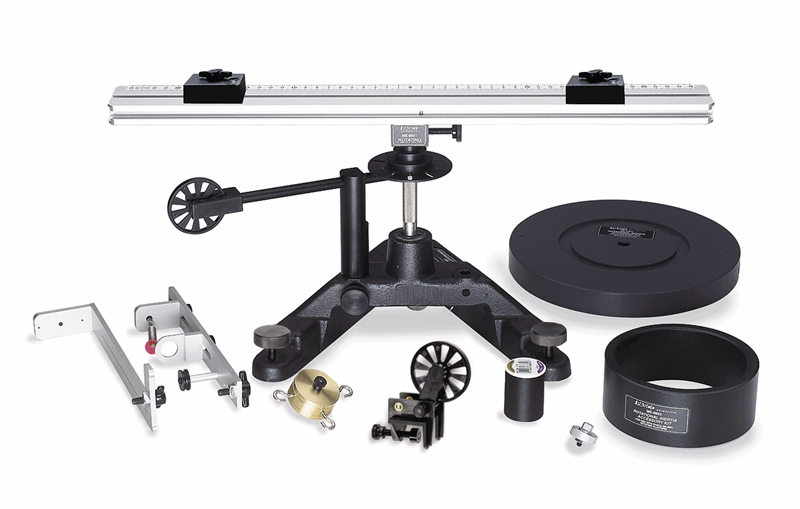

The Complete Rotational System features a cast iron base, dual ball bearings, and stainless steel shaft. It generates moments of inertia large enough to be sensed by anyone rotating the system by hand. This system is ideal for experiments pertaining to centripetal force, angular momentum, and rotational motion. Additional accessories can be added for experiments concerning torques, friction, magnetic levitation, and Faraday’s Law.&nb...

Features

  • Four kilogram cast iron base for stability
  • Dual ball bearings
  • Precision stainless steel shaft

Perform These Experiments

  • Centripetal Force
  • Rotational Inertia of a Point Mass
  • Rotational Inertia of a Disk Off-Axis (fixed and rotating)
  • Rotational Inertia of Disk and Ring - Two Axes
  • Conservation of Angular Momentum, Using a Point Mass
  • Conservation of Angular Momentum, Using a Disk and Ring
  • Conservation of Angular Momentum (Projectile Version)

How It Works

The Complete Rotational System makes it easy to implement computer-based data collection and analysis when used with a Rotary Motion Sensor or Photogate.



  • The Rotary Motion Sensor mounts to the base with an “A” Adapter and measures both angular velocity and direction
  • The Photogate Head mounts directly to the rotating platform base to measure angular velocity

What's Included

  • 1x Rotating Platform (ME-8951)
  • 1x Rotational Inertia Accessory (ME-8953)
  • 1x Centripetal Force Accessory (ME-8952)
  • 1x Instruction Manual

 WARNING: CHOKING HAZARD!

Small parts. Not for children under 3 years.
