Bridge Vibrations Experiment

Bridge Vibrations Experiment
Varenr.
EX-5548
Lager
Bestillingsvare
Pris
kr 50 730,00 Eks. MVA

Kvantumsrabatt

Loading...

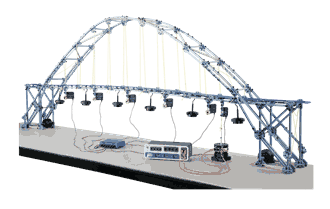

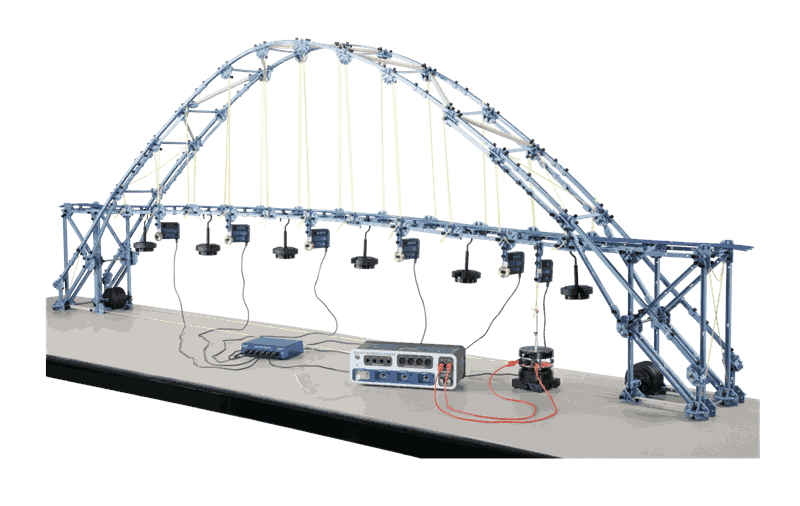

  • Bridge Vibrations Experiment
  • EX-5548 1
  • EX-5548 2
  • EX-5548 3

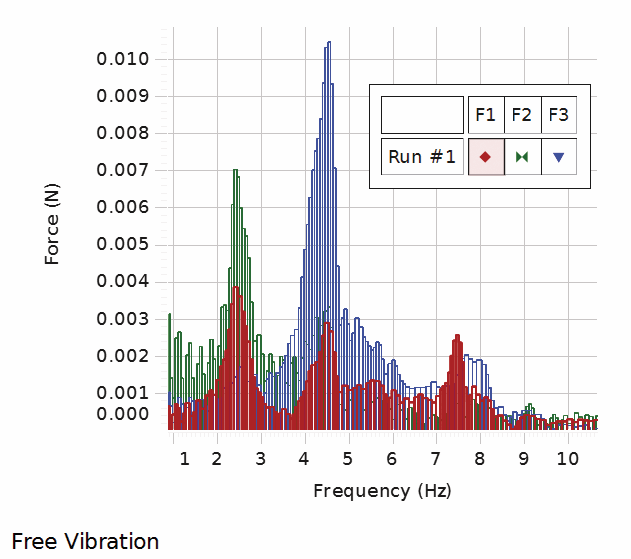

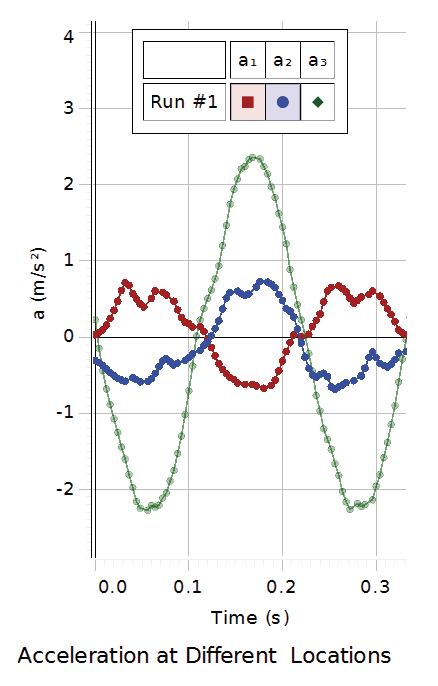

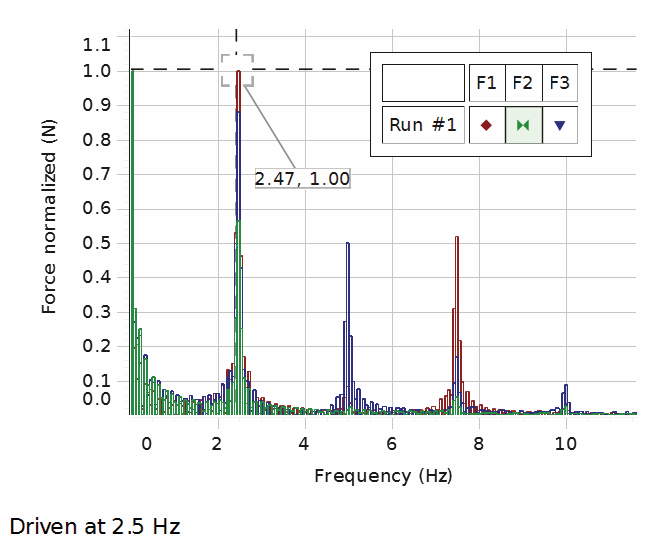

In this experiment designed for use with PASCO Capstone software, by using 5 N Loadcells at different positions on the bridge to measure bridge oscillations, students compare the driving force to the resulting acceleration. The bridge is struck by hand, and allowed to freely oscillate. PASCO Capstone generates a FFT graph which shows that there are several resonance frequencies and that the amplitudes differ based on location on the ...

Concepts

  • Resonance in complex systems
  • Driven vs. free vibrations

What's Included

  • 1x Large Structures Set (ME-7003)
  • 1x PASPORT Load Cell Amplifier (PS-2198)
  • 1x 100 N Load Cell (PS-2200)
  • 5x 5 N Load Cell (PS-2201)
  • 1x Mechanical Wave Driver (SF-9324)
  • 1x Banana Plug Cord-Red (5 Pack) (SE-9750)
  • 1x Rubber Cord for IDS System (30m Spool) (ME-8986)
  • 4x Large Slotted Mass Set (2 kg Set) (ME-7589)
  • 2x Short Mass Hanger (ME-7590)
  • 18x 20 g Replacement Mass Set (ME-8983)
